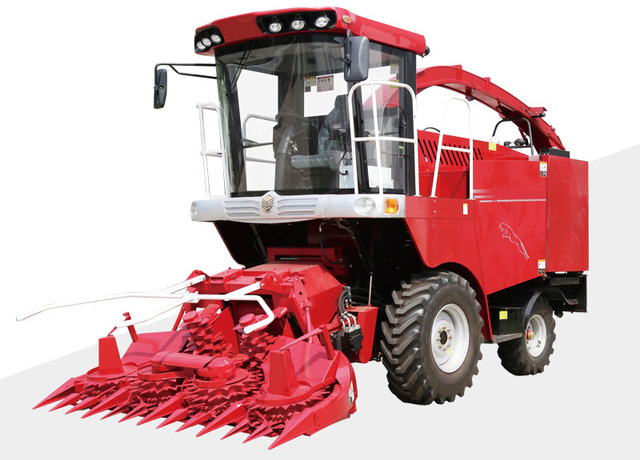

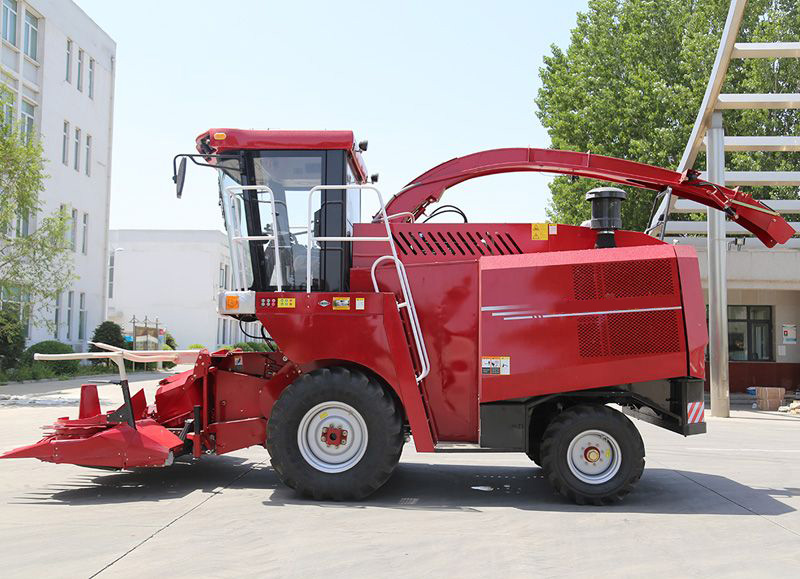

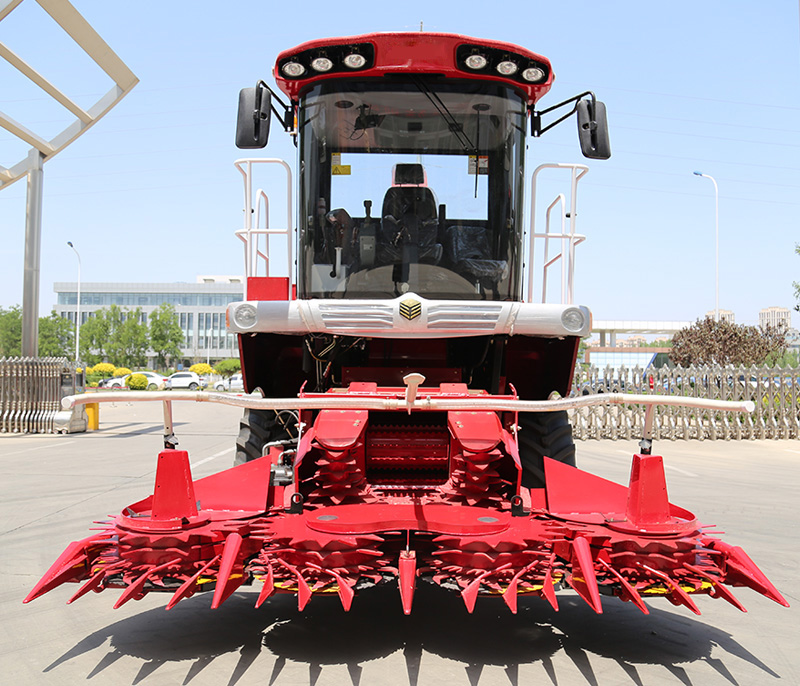

Header
1. Row independent header with high-speed cutting rotors and freewheel mechanism. 9QS-350 uses a foldable header for road travel, with a minimum width of 2.5m
2. Hydraulic reversal mechanism, tungsten-carbide coated blades, and maize stubble cleaners all provide the best performance.
Cutting and Comminution
1. 24 V-form herringbone configuration blades increase cutting efficiency and prolong belt life. The chopping drum is sealed to increase quality. Allows two sizes of cutting.
2. Automatic sharpening increases output per shift, saves fuel, and facilitates the operator’s work;
3. Maintenance-free bearings on all major components in the intake system, reducing the need for maintenance.
4. Intake system and chopping system can be switched as a whole for easier maintenance and changing.
Corn cracker
1. Hardened crackers comminute whole-plant-silage fast and effectively. Duo rollers ensure maximized cracking and prolonged life.
2. Silage duct can move in a 180-degree range and high and low.
Operation
1. Hydrostatic transmission allows a walking speed of 26 km/h.
2. All-in-one handle for easier control.
Multifunctional Handle
One handle controls all functions through electromagnetic valve. All systems are hydraulic, ensuring stability and operability.
Luxury Cab
Completely sealed and equipped with air conditioner, it creates a clean and comfortable working environment for the driver.
Equipped with an Accelerator
Allows forage flows go further and stabler, easier for the forage wagon to receive
Herringbone Blades On The Cutting Device
Sheer bar and blades are treated to maximize hardness and ensure cutting efficacy and longer belt life. The cutter drum is also completely sealed for drum life and cutting efficiency.
Corn Cracker Uses Duo-rollers
Each seed can be crushed into 3-8 pieces, with over 96% crush rate. Higher nutrition in forage and better for your livestocks. Roller treated with heat treatment and will last longer.

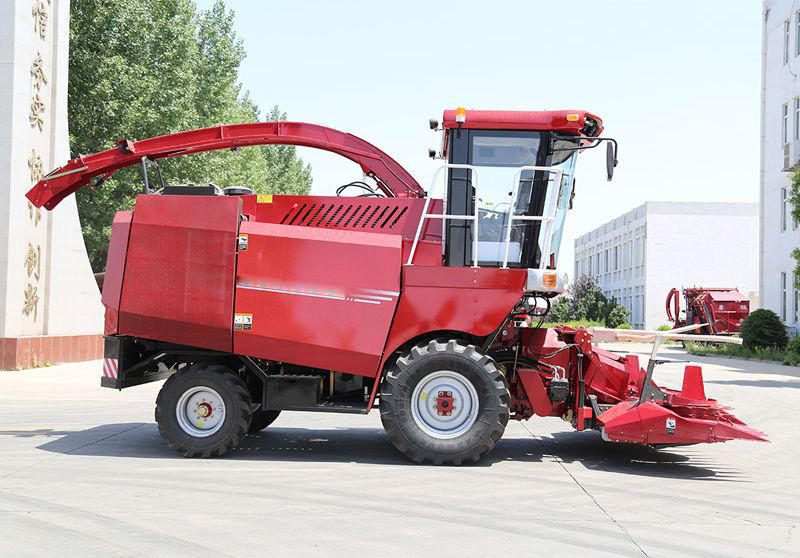

Item | YC9QS-300A | YC9QS-350 |
Header width, mm | 3200 | 3500 |
Engine Power, kW/hp | 247/336 | 279/380 |
Engine Working Speed, rpm | 2200 | 2200 |
Fuel Tank Volumn, L | 500 | 500 |
Total Mass, kg | 10200 | 10800 |
Residual Stalk Height, mm | ≤150 | ≤150 |
Drive Mode | Hydraulic | Hydraulic |
Corn Cracker Mode | Duo Roller | Duo Roller |
Forage length, mm | 13 or 21 | 13 or 21 |
