» Harvester » YC4YZ-6/6AFQ Six-row Self Propelled Corn Picker Harvester
  • YC4YZ-6/6AFQ Six-row Self Propelled Corn Picker Harvester

    • Description

    YC4YZ-6/6AFQ Six-row Self Propelled Corn Picker Harvester

    Technical Overview

    6 Row Headers
    Small header row distance to enjoy versatile plant row fitness, whether equal distance or 400-700, 400-800 narrow-and-wide distance. Specially made header to capture the most.
    Lowest Profile Angle
    Minimally harvest 200mm above ground and deals well with stalk lodging.
    Capture Deck Plate
    Single unit, easy to adjust and maintain, with aggressive overlapping chains.
    Peeling System
    Starshaped pressor and natural rubber peeler to preserve maximum peeling efficiency while retain the whole ear.
    Cleansing System
    Duo cleansing fans to maximize ears in tank. Interchangeable options of either electronic grain unloader or grain cleanser.
    Fruit Tank
    Increased tank size to help your harvesting efficiency.
    Chassis
    1000 series transmission and gear box to provide you with stability. Hydrostatic walking ensures your operability and quality. Also available in 4WD for all terrain fitness.
    Chopping System
    Roller blades provide you with an optimum balance of maximized harvesting and quality chopping in both optimal and tough conditions.

    Technical Details

    Capture deck plate
    Single unit, easy to adjust and maintain, with aggressive overlapping chains
    5 sets of peeling rollers
    Great peeling efficiency and preserve maximum seeds
    Uploader equipped with duo cleansing fans
    Your gains are pure and clean
    Equipped with 1000 series hydraulic transmission & gearbox
    Walking in all terrains like plain
    Chopping with knife rollers
    designed to deliver the chop quality you want and still retain yield

    Specification

    Item Unit YC4YZ-6 YC4YZ-6AFQ
    Header rows / 6
    Engine Power kW/hp 129/175 or 140/190
    Engine working speed rpm 2200
    Dimensions(Length×Width×Height) mm 8430×2900×3700
    Mass Kg 8500 8600
    Fruit tank size m3 3
    Min. cutting height mm 200
    Grain gain rate / >98%
    Peeling rate / >95%
    Drive mode / Hydrostatic 2WD Hydrostatic 4WD

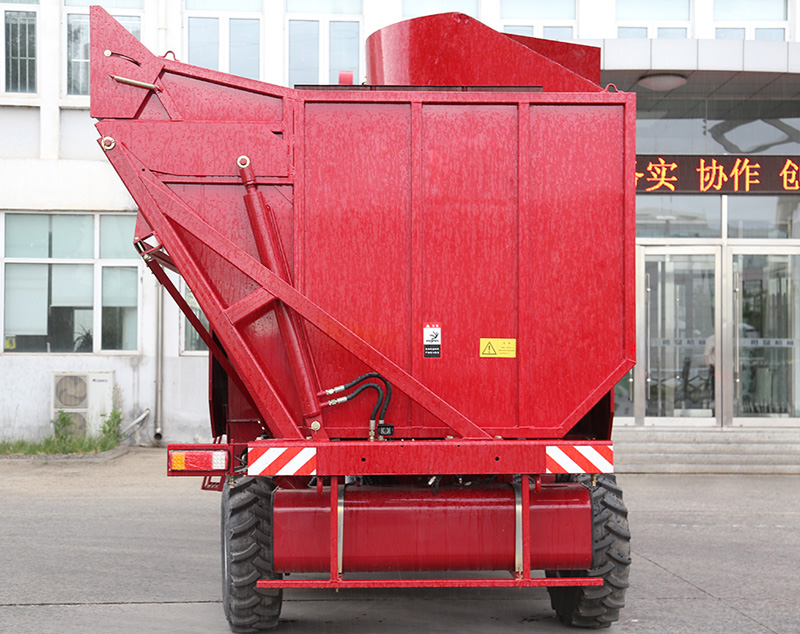

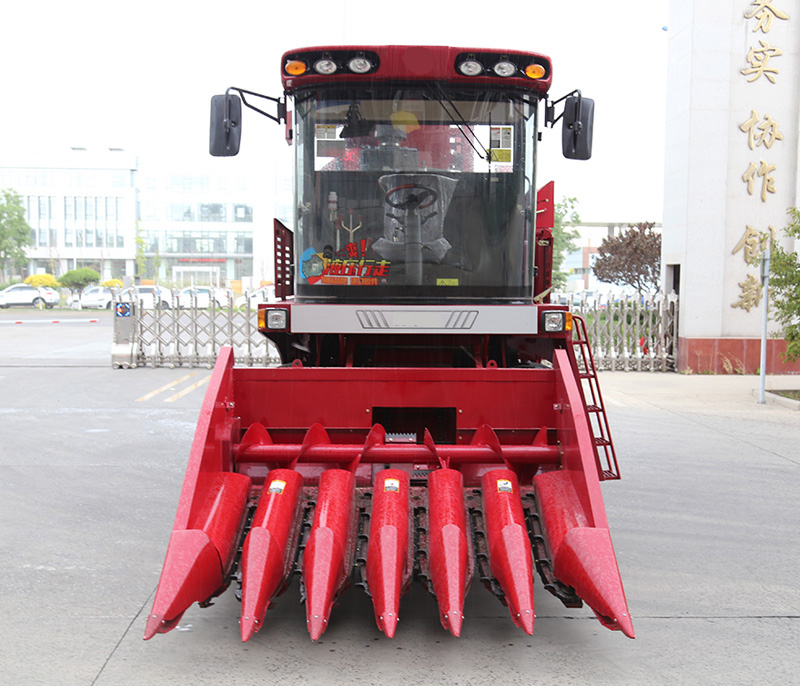

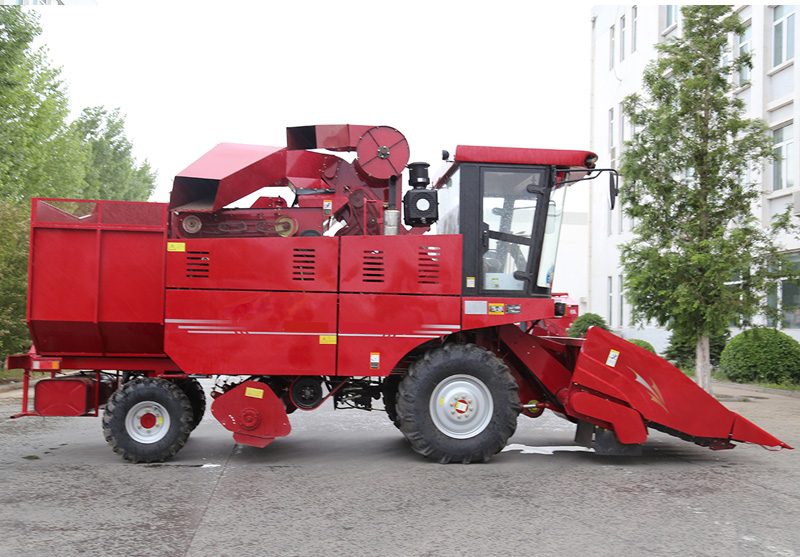

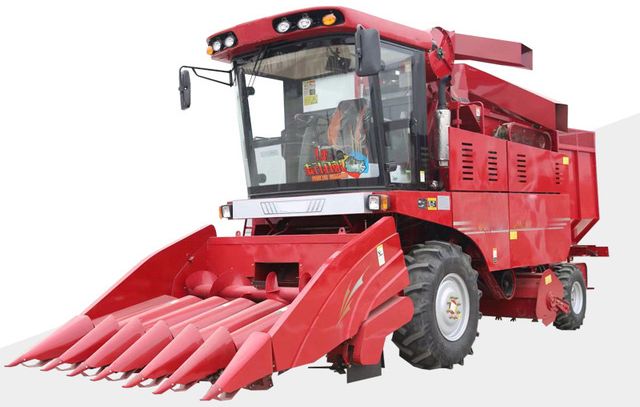

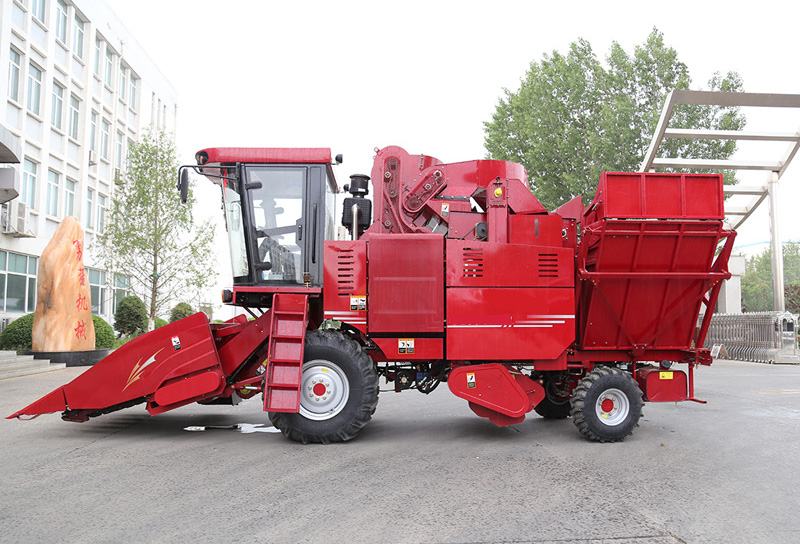

    Product Photos

    YC4YZ-6/6AFQ Six-row Self Propelled Corn Picker Harvester YC4YZ-6/6AFQ Six-row Self Propelled Corn Picker Harvester YC4YZ-6/6AFQ Six-row Self Propelled Corn Picker Harvester YC4YZ-6/6AFQ Six-row Self Propelled Corn Picker Harvester
