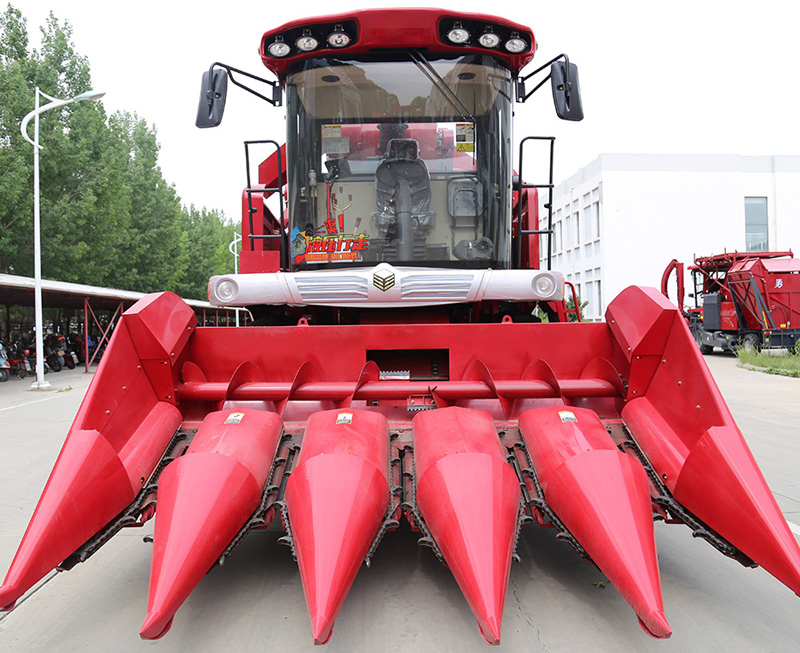

Header
Use patented knife-to-knife design for faster intake and it works great even in wet weather. Specialized header cover helps you harvest lodging maize.
Peeler
With 6 sets of peeler rollers, it ensures you get only corncob. Made of natural rubber to protect every grain
Residue Cleaning
Equipped with cleansing fans and floating remover to ensure all you get is your crop. No stalks, no leaves.

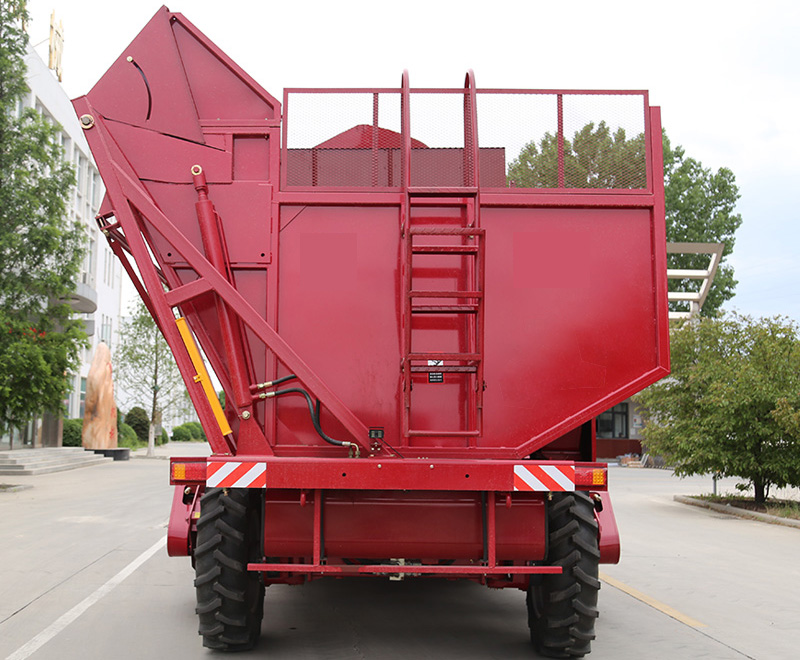

Fruit Tank
The largest fruit tank from Yongmeng Family. More time harvesting and less time unloading.
Great Engine
Duo power output makes this harvester a beast. Advanced electronic control ensures smooth output and better fuel efficiency. Also equipped with a cleansing fan to remove any residue on the engine cover.
Easy Controls
Designed to fit human body, the function control is most convenient to the driver.
Chassis and Wheels
The 1000 series transmission and gearbox ensures the best strength and driving experience. Hydrostatic driving for 5AQ1 and 5AFQ gives you a control better than ever. A standardized 18.4-30 front wheel coupled with our axles means you can walk in any terrain like a plain. With additional 4WD from 5AFQ, the king of farmlands is at your service.
Capture Deck Plate
Single unit, easy to adjust and maintain, with aggressive overlapping chains and knife-to-knife design.
Duo Residue Remove Fans
Duo fans give you cleaner fruit tank and seed collector
Standardized Floating Cleanse System
Cleanse any remaining stalks from the system to protect your crop flow
Equipped with 1000 Series Hydraustatic Transmission & Gearbox
Walking in all terrains like plain
Item | Unit | YC4YZ-5AFQ | YC4YZ-5AQ1 | YC4YZ-5A | YC4YZ-5B | YC4YZ-5K | YC4YZ-4T |
No. of Rows | / | 5 | 5 | 5 | 5 | 5 | 4 |
Engine Power | kW/hp | 140/190 | 140/190 | 140/190 | 140/190 | 140/190 | 140/190 |
Engine Working Speed | rpm | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 |
Dimensions(L×W×H) | mm | 9270×3600×3700 | 9270×3600×3700 | 8955×3500×3700 | 8955×3315×3700 | 9270×3435×3700 | 9300×3925×3700 |
Total Mass | Kg | 10400 | 10400 | 9200 | 9100 | 9110 | 8900 |
Fitted Row Spacing | mm | 600-700 | 600-700 | 600-700 | 540-640 | 570-670 | 650-750 |
Fruit Tank Size | m3 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
Minimum Header-to-ground Distance | mm | 350 | 350 | 350 | 350 | 350 | 350 |
Total Gain Rate | / | >98% | >98% | >98% | >98% | >98% | >98% |
Peeling Rate | / | >95% | >95% | >95% | >95% | >95% | >95% |
Drive Mode | / | Hydrostatic 4WD | Hydrostatic 2WD | Mechanical 2WD | Mechanical 2WD | Mechanical 2WD | Mechanical 2WD |
