Drive Mode
Hydrostatic drive provides you with ease to drive and handle.
Capture Deck Plate
A knife-to-knife design allows plants to move farther back into the corn head before the ear is removed and reduce loss.
Peeling System
Peeler uses sustainable rubbers to prolong use life.
Powerful Engine
200 hp engine allows you to work on almost any terrain.
Cooling System
Increased cooling system with plate-fin design helps you work under extreme conditions.
Selection System
Vibrating screens and electronic seed unloading save every single grain.

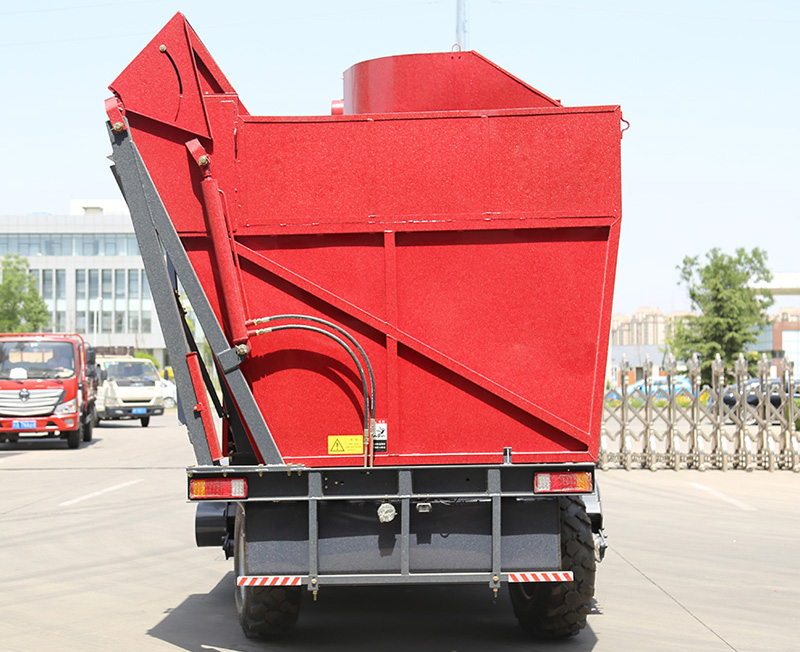

Loading System
Ear transport device ensures your fruit tank is always filled to the top.
Versatility
Works great whether the weather is humid or dry.
Monitor System
Multiple monitors provide you with comprehensive information about harvesting.
Row independent header
A knife-to-knife design moves plants fast. Row independent makes picker versatile.
Starshape pressor and natural rubber peeler
Great peeling effiency and much longer use life.
Seed collector
Reduce grain loss and easy to unload.
Vibrating screens
Ensures no peel is in the seed collector and higher collection rate.
Hydraulic Drive
Uses Interpump Weifu to ensure best quality
Item | unit | YC4YZ-4EX |
Header rows | / | 4 |
Engine power | kW/hp | 147/200 |
Engine working speed | rpm | 2200 |
Dimensions(length*width*height) | mm | 6850×2740×3460 |
Mass | kg | 7400 |
Fitted row distance | mm | Row independent |
Grain tank size | m3 | 2.6 |
Minimum distance to ground | mm | 250 |
Total grain gain | / | >96% |
Peeling efficiency | / | >85% |
Drive mode | / | Hydaulic drive |
