Drive Mode
Hydrostatic drive provides you with ease to drive and handle, plus great fuel efficiency.
Header
row independent header provides fast harvesting and less fuel consumption. Coupled with specialized holder to ensure best intake.
Peeling System
Peeler uses sustainable rubbers to prolong use life. 5-sets of peelers is more than anyone could provide. Combined with star-shaped pusher, all ears will be clean.
Powerful Engine
20 hp engine allows you to work on almost any terrain. Duo power output with advanced electric control to maximize your fuel efficiency.
Cooling System
Increased cooling areas with plate-fin design and tank size helps you work under extreme conditions.
Selection System
Vibrating screens and electronic seed unloading save every single grain.
Comminution
duo maize stubble choppers in front and in the middle to ensure best comminution efficiency.
Loading System
Ear transport device ensures your fruit tank is always filled to the top.
Versatility
Works great whether the weather is humid or dry.
Monitor System
Multiple monitors provide you with comprehensive information about harvesting.

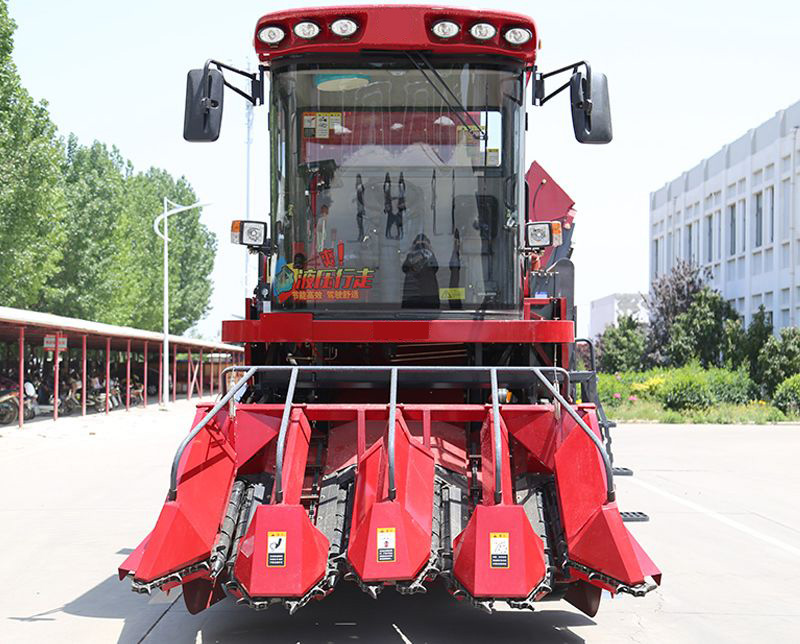

Row Independent Header With Specialized Holder
Row independent makes picker versatile.
Starshape Pressor And Natural Rubber Peeler
Great peeling effiency and much longer use life.
Vibrating Screens
Ensures no peel is in the seed collector and higher collection rate.
Seed collector
Reduce grain loss and easy to unload.
Hydraulic Drive
Uses Danfoss & Interpump Weifu to ensure best quality
Item | Unit | Values |
Header rows | / | 4 |
Engine power | kW/hp | 162/220 |
Engine working speed | rpm | 2200 |
Dimensions(length*width*height) | mm | 6740×2660×3480 |
Mass | kg | 7300 |
Fitted row distance | mm | Row independent |
Grain tank size | m3 | 2.6 |
Minimum distance to ground | mm | 250 |
Total grain gain | / | >96% |
Peeling efficiency | / | >85% |
Drive mode | / | Hydraulic Drive |
